Computes ecological implausibility for a fitted model or its estimated coefficients

Source: R/implausibility.R
implausibility.Rd

This function evaluates ecological plausibility in model coefficients and response curves. Ecological plausibility refers to whether estimated relationships between predictors and responses are consistent with prior ecological theory, expected species–environment relationships, and smooth asymptotic behavior. Implausible responses include abrupt sign changes, oscillations between selection and avoidance, and coefficient signs opposite to prior expectations.

Usage

implausibility(x, ...)

# S3 method for class 'numeric'
implausibility(
  x,
  which_coef_sign = c("count", "sum", "raw", "index")[1],
  expected_sign = -1,
  zero_coefficient_limit = 1e-08
)

# S3 method for class 'data.frame'
implausibility(
  x,
  expected_sign = -1,
  response = c("mean", "mid")[1],
  measure = c("n_crosses", "where_crosses", "response_area_opposite",
    "response_area_ratio", "n_inflection", "difference_inflection",
    "response_area_inflection")[1]
)

# S3 method for class 'bag'
implausibility(
  x,
  data,
  measure = c("coef_sign", "n_crosses", "where_crosses", "response_area_opposite",
    "n_inflection", "difference_inflection"),
  wmean = TRUE,
  which_coef_sign = c("count", "sum")[1],
  expected_sign = -1,
  zero_coefficient_limit = 1e-08,
  which_n_cross = c("mean", "sum")[1],
  response = c("mean", "mid")[1],
  baseline = "zero",
  type_feature = "point",
  type_feature_recompute = TRUE,
  resolution = 200,
  radii = c(100, 250, 500, 1000, 2500, 5000, 10000),
  zoi_shape = c("circle", "Gauss", "rectangle", "exp_decay", "bartlett", "threshold",
    "mfilter")[1],
  radius_max = NULL,
  ...
)

Arguments

x

[bag]
A bag of models, resulting from a call to bag_models().

expected_sign

[numeric(1)=-1]
Expected sign of the coefficient. Either -1, +1, or 0 (no effect).

zero_coefficient_limit

[numeric(1)=1e8]
Value above which an estimated coefficient is considered non-zero. Default is 1e-8.

measure

[string(1)]{""coef_sign", "n_crosses", "response_area""}
Measure used to quantify ecological implausibility in the model or coefficients. It can be one or multiple of these options:

  • "coef_sign": counts coefficients whose sign is opposite to the ecologically expected sign.

  • "n_crosses": counts sign crossings for the response curve.

  • "response_area": computes area under the response curve in the unexpected direction.

data

[data.frame]
The original, complete data used for model fitting.

which_coef


Which measure to use for the coefficients, when measure = "coef_sign". If count (default), only the sign matterns and we count the number of coefficients with unexpected sign. If sum, we count the sum of the (standardized) coefficients, to also account for their magnitude.

Examples

#-------
# implausibility for vector of coefficients

# implausibility for coefficients for one type of ZOI variable

# set coefficients
coefs <- c(-1, -0.5, -0.1, 0.8, 0.3, -0.1)
expected_sign <- -1
implausibility(coefs, expected_sign = expected_sign)
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "c('double', 'numeric')"
implausibility(coefs, expected_sign = expected_sign, which_coef = "sum")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "c('double', 'numeric')"
implausibility(coefs, expected_sign = expected_sign, which_coef = "raw")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "c('double', 'numeric')"
implausibility(coefs, expected_sign = expected_sign, which_coef = "index")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "c('double', 'numeric')"

#-------
# implausibility for data.frame with (x,y) for line

# checking for lines crossing zero
x <- seq(0, 10, 0.01)
y <- -8 + 10 * x - 1.5 * x**2
df <- data.frame(x = x, y = y)

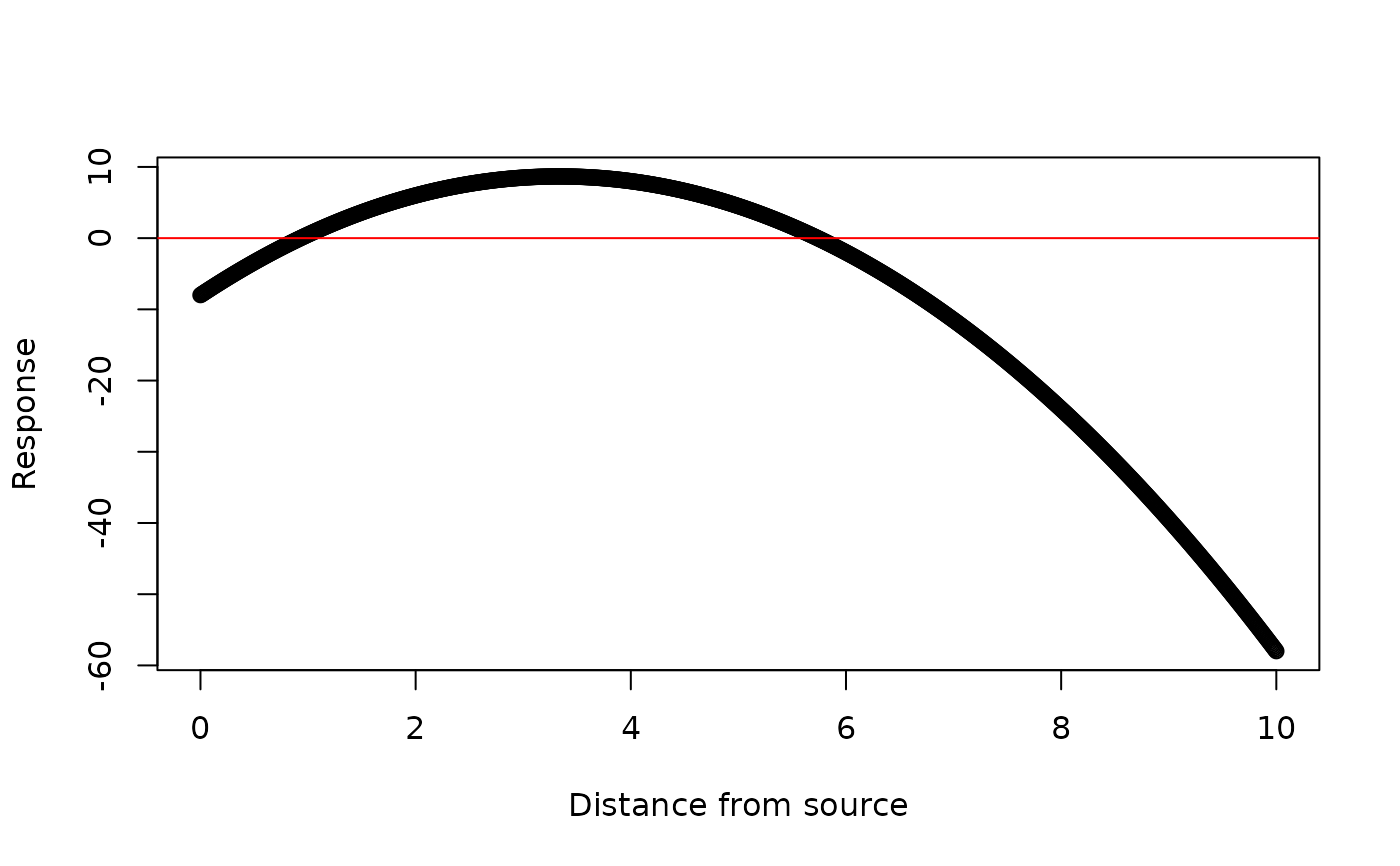

plot(x, y, ylab = "Response", xlab = "Distance from source")
abline(h = 0, col = "red")


# n crosses
implausibility(df, response = "y", measure = "n_crosses")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "data.frame"
# where does the curve crosses zero
implausibility(df, response = "y", measure = "where_crosses")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "data.frame"
# area on the opposite side of the expected sign
implausibility(df, response = "y", measure = "response_area_opposite")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "data.frame"
# ratio between area above and area on the expected sign
implausibility(df, response = "y", measure = "response_area_ratio")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "data.frame"

# checking for inflection points
x <- seq(0, 14, 0.01)
y <- -560 + 314 * x - 56 * x**2 + 3*x**3
df <- data.frame(x = x, y = y)

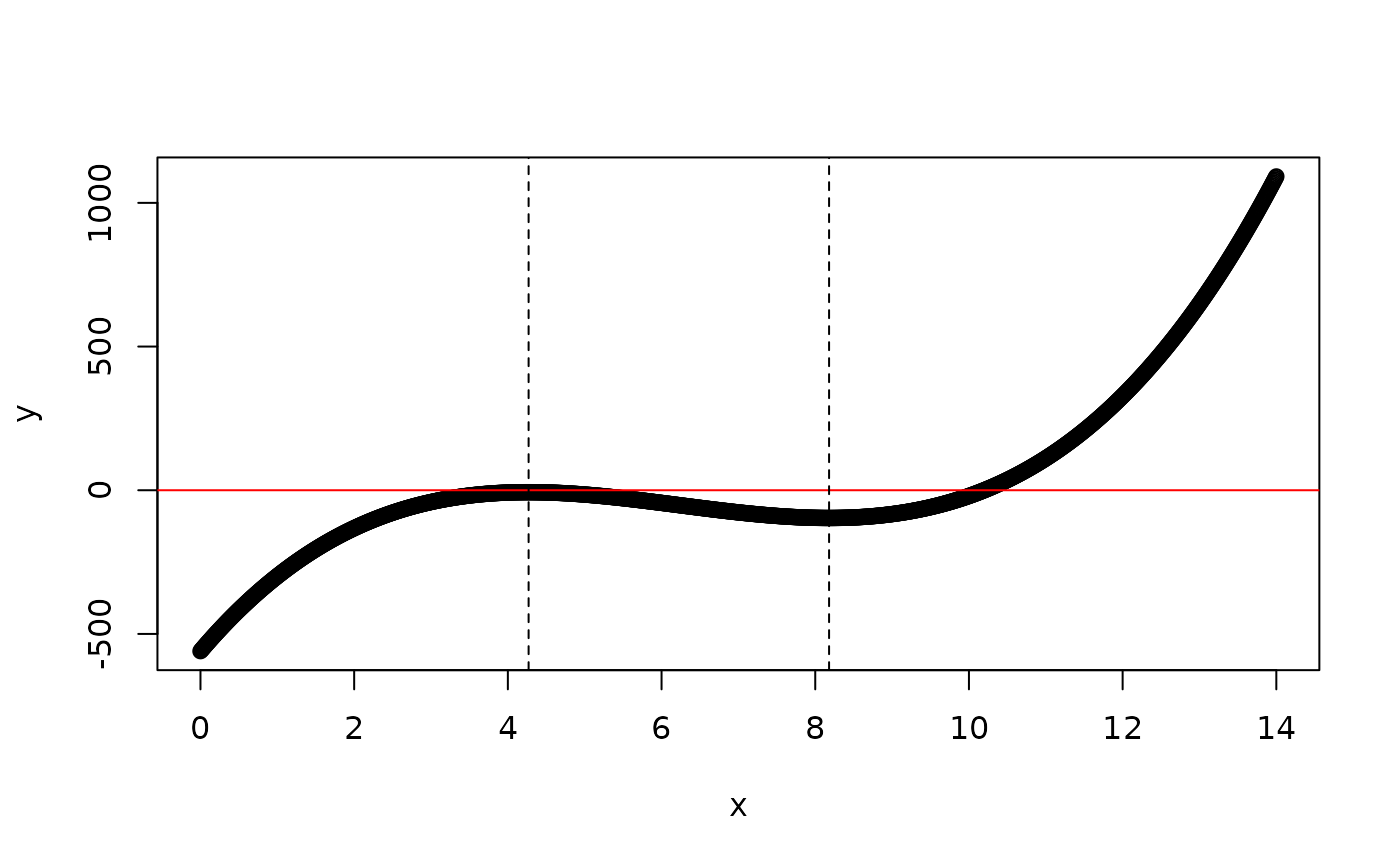

plot(x, y); abline(h = 0, col = "red")

# inflection points
which(inflection(y))
#> [1] 428 819
abline(v = x[inflection(y)], lty = 2)


# n crosses
implausibility(df, response = "y", measure = "n_crosses")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "data.frame"
# n inflection points
implausibility(df, response = "y", measure = "n_inflection")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "data.frame"
# difference between inflection points
implausibility(df, response = "y", measure = "difference_inflection")
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "data.frame"

#-------
# implausibility for bag

#---
# fit a bag to be tested

# load packages
library(glmnet)
#> Loading required package: Matrix
#> Loaded glmnet 5.0
#>
#> Attaching package: ‘glmnet’
#> The following objects are masked from ‘package:oneimpact’:
#>
#>     Cindex, coxnet.deviance

# load data
data("reindeer_rsf")
# rename it just for convenience
dat <- reindeer_rsf

# formula initial structure
f <- use ~ private_cabins_cumulative_XXX + public_cabins_high_cumulative_XXX +
  trails_cumulative_XXX +
  NORUTreclass +
  # poly(norway_pca_klima_axis1, 2, raw = TRUE) +
  # poly(norway_pca_klima_axis2, 2, raw = TRUE) +
  norway_pca_klima_axis1 + norway_pca_klima_axis1_sq +
  norway_pca_klima_axis2 + norway_pca_klima_axis2_sq +
  norway_pca_klima_axis3 + norway_pca_klima_axis4

# add ZOI terms to the formula
zois <- c(100, 250, 500, 1000, 2500, 5000, 10000, 20000)
ff <- add_zoi_formula(f, zoi_radius = zois, pattern = "XXX",
                      cumulative = "",
                      type = c("exp_decay"),#, "nearest_exp_decay"),
                      separator = "", predictor_table = TRUE)
f <- ff$formula
pred_table <- ff$predictor_table

# sampling - random sampling
set.seed(1234)
samples <- create_resamples(y = dat$use,
                            p = c(0.2, 0.2, 0.2),
                            times = 20,
                            colH0 = NULL)
#> [1] "Starting random sampling..."

# fit multiple models
fittedl <- bag_fit_net_logit(f,
                             data = dat,
                             samples = samples,
                             standardize = "internal", # glmnet does the standardization of covariates
                             metric = "AUC",
                             method = "AdaptiveLasso",
                             predictor_table = pred_table,
                             parallel = "mclapply",
                             mc.cores = 8) #2)

# bag models in a single object
bag_object <- bag_models(fittedl, dat, score_threshold = 0.7)

# bag_object$coef %*% bag_object$weights
# sapply(fittedl, function(x) x$train_score)

#---
# plot to check

# ZOI public cabins cumulative
dfvar = data.frame(trails_cumulative = 1e3*seq(0.2, 20, length.out = 100))

# look into curve

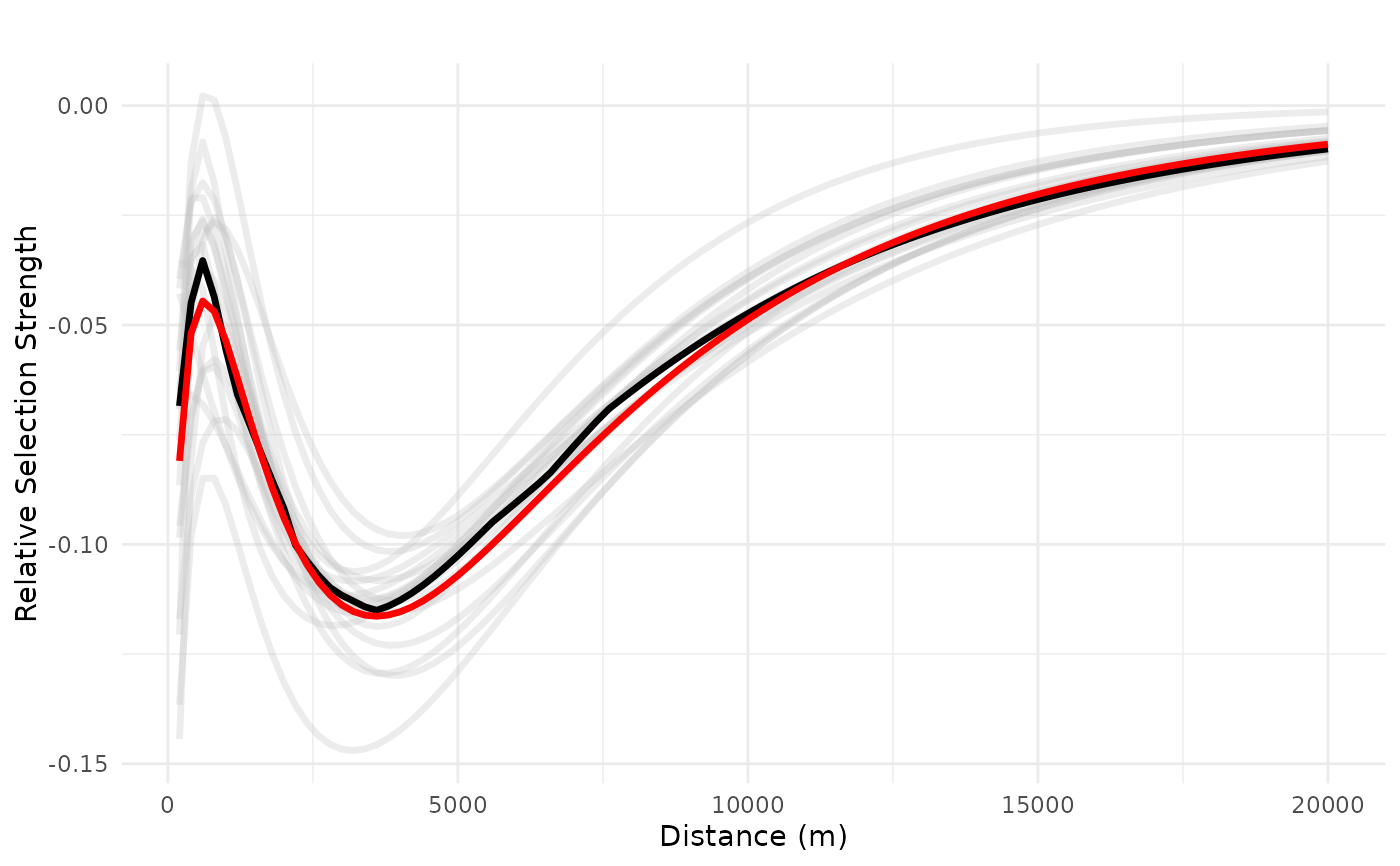

plot_response(bag_object,
              dfvar = dfvar,
              data = dat,
              type = "linear", zoi = TRUE,
              type_feature =  "line",
              type_feature_recompute = TRUE,
              resolution = 300,
              ci = FALSE, indiv_pred = TRUE)

# with no line, just as an example

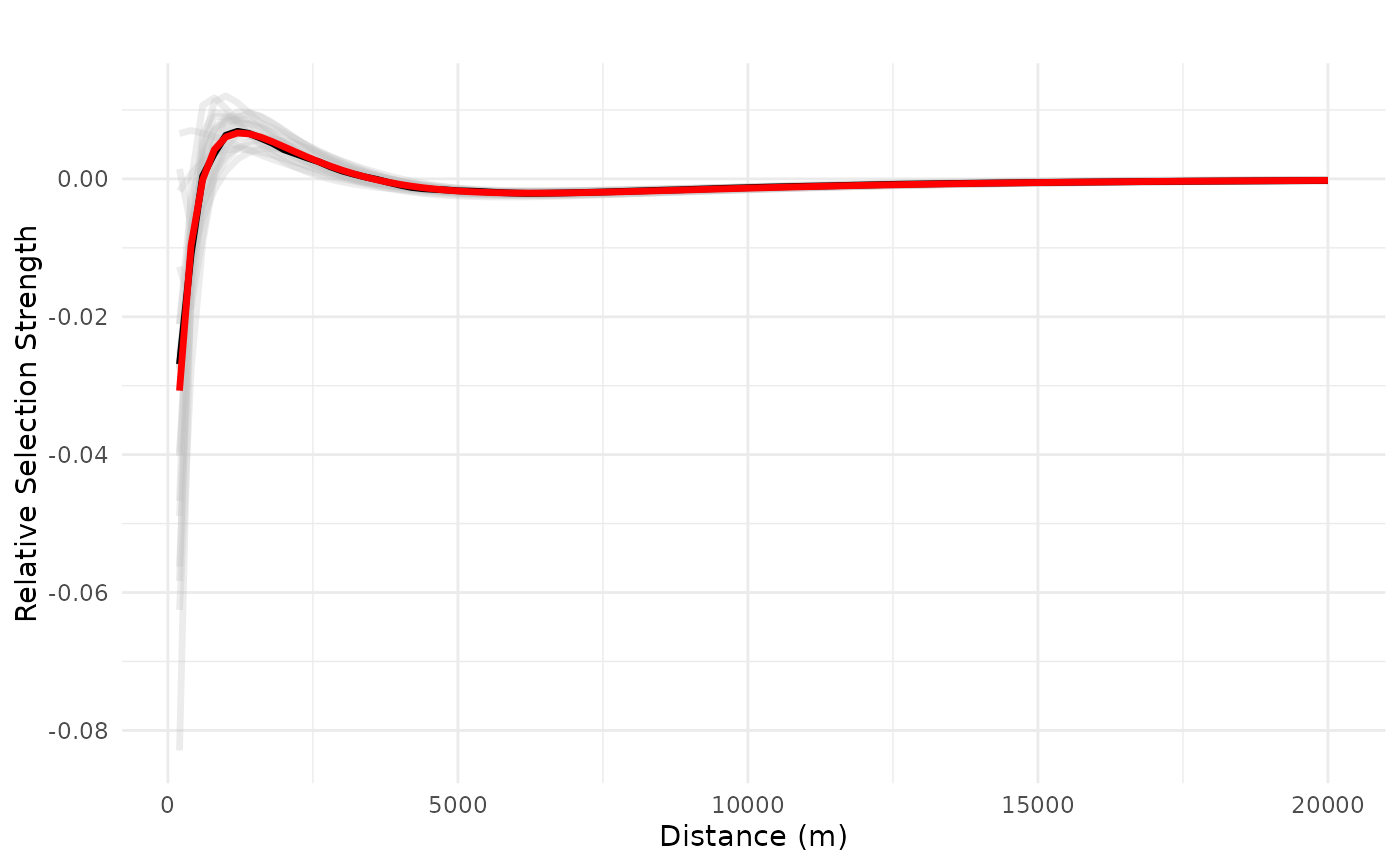

plot_response(bag_object,
              dfvar = dfvar,
              data = dat,
              type = "linear", zoi = TRUE,
              ci = FALSE, indiv_pred = TRUE)


plot_response(bag_object,
              dfvar = dfvar,
              data = dat,
              type = "linear", zoi = TRUE,
              ci = FALSE, indiv_pred = TRUE,
              ggplot = FALSE) |>
  ggplot(aes(trails_cumulative, Resample01)) +
  geom_line()
#> Error in ggplot(plot_response(bag_object, dfvar = dfvar, data = dat, type = "linear",     zoi = TRUE, ci = FALSE, indiv_pred = TRUE, ggplot = FALSE),     aes(trails_cumulative, Resample01)): could not find function "ggplot"

# we try the function with the curve above, but then test how we could work with the more correct one below
# implausibility measures
implausibility(bag_object,
          data = dat,
          type_feature = c("point", "line", "line"))
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "c('bag', 'list')"

# for each individual model
implausibility(bag_object,
          data = dat,
          wmean = FALSE)
#> Error in UseMethod("weirdness"): no applicable method for 'weirdness' applied to an object of class "c('bag', 'list')"
