8 Coastal ecosystem
The Nature Index (NI) is calculated as a weighted mean of a range of different indicators. Each indicator is first scaled with respect to its reference value such that it takes on values between 0 and 1, where 0 corresponds to a species (group)/habitat type being extinct/completely lost, and 1 corresponds to an abundance of a species /group)/habitat type as we would expect it in an ecosystem with as little as possible human disturbance. In the case of semi-natural ecosystems, value 1 represents the indicator state in a well-managed ecosystem. After scaling, each indicator is assigned a composite weight that is dependent on trophic group, relative area for which data are available, and key indicator status. In early versions of NI, ecosystem fidelity (given as % of the indicator distributed across different ecosystems) was also used for assigning weights; however, as of NI2020, this is no longer done as there is no reason to down-weigh an indicator in ecosystem A just because it also appears in ecosystem B. NI for a given ecosystem is the calculated as a weighted average of all relevant indicators. For more information on the Nature Index framework, please refer to the sources provided in Chapter XX: “Links and references”.
In the following, I describe the workflow for calculating NI2025 for coastal ecosystems.
The workflow is largely based on scripts developed for automating NI calculations for ecosystem condition accounts and collated in the “NIflex” package (https://github.com/NINAnor/NIflex). Most operations have previously been coded in the “NIcalc” package (https://github.com/NINAnor/NIcalc). The workflow here contains the following steps:
- Retrieval of necessary data from NI database
- Calculation of NI2025
- Visualization of NI2025 as time-series plots (traditional and using density ridges) and maps
- Local storage of results
- Remote storage of results in NI database to be used for visualizations on the webpage
A note on reference value uncertainty
Reference values can be – and have been – entered into the NI database either with or without associated uncertainty. Most reference values have been set early on in the NI work (period 2010-2014) and not changed since; a few have been updated or re-calibrated since. The approaches for setting reference values across the indicator set have been extremely variable, and neither particularly structured nor harmonized. This is one of the reasons why reference value uncertainty has not been included in previous iterations of NI (NI2010, NI2015, NI2020).
Investigating the effects of including reference value uncertainty on NI calculations is not part of the commission for NI2025, either. As such, also NI2025 is calculating without accounting for reference value uncertainty.
This should, however, be considered for future work, ideally in combination with a re-assessment and structured and standardized update of reference values across the indicator set. Fortunately, the option for using uncertain reference values in practice is already coded into “NIcalc”; specifically, within NIcalc::calculate_Index() there is a function called setCalculationParameters(), and the argument stochastic of that function has to be changed from “obervations” to “both” to include uncertainty in both yearly indicator values and reference values.
8.1 General setup
There are a few variables that are used to control execution of parts of the code in this chapter. We start off by defining these here:
## Years
years <- c("2000", "2010", "2014", "2019", "2024")
## Year for map plots
mapYear <- max(years)
## Missing value imputation
NAImputation <- TRUE
## Key indicator weighing
KeyIndicators <- TRUE
KeyWeight <- 0.5
## Area weighing
AreaWeights <- TRUE # Yes
## Trophic weighing
TrophicWeights <- TRUE # Yes
## Norwegian indicator names
norwegianNames <- TRUE
## Output type
OutputType <- "NatureIndex"
## Nature Index ecosystem
#Ecosystem <- c("Forest", "Skog")
#Ecosystem <- c("Mountain", "Fjell")
#Ecosystem <- c("Wetlands", "Våtmark")
#Ecosystem <- c("OpenLowland", "Åpent lavland")
#Ecosystem <- c("Freshwater", "Ferskvann")
Ecosystem <- c("Coast", "Kystvann")
#Ecosystem <- c("Ocean", "Hav")
EC_ecosystem <- NULL
ecosystem_use <- Ecosystem[2]
## Thematic index name
theme <- "None"
## Options for dropping indicators
DropIndMode <- "pre-defined"
DropIndList <- NULL
## Diagnostics imputation
Diagnostics <- TRUE # Yes
## Test run (10 vs. 1000 iterations in simulation)
#TestRun <- TRUE # Yes
TestRun <- FALSE # No
## Shapefiles library path
shapeLibraryPath <- Sys.getenv("NI_shapeLibraryPath", unset = "data/Shapefiles")
#shapeLibraryPath <- "P:/412430_naturindeks/Beregninger/Shapefiles" # for running locally on NINA PC
#shapeLibraryPath <- "/data/P-Prosjekter2/412430_naturindeks/Beregninger/Shapefiles" # for running on NINA RStudio serverAdditionally, we will define and set a seed to ensure reproducibility of the simulations:
Since calculations are quite time-consuming, I will also code in a switch to control when they are to be re-run. As a default, R will check if any files with names corresponding to the saved results are already present in the working directory and only re-run calculations if that is not the case.
If the switch forceRerun is set to TRUE, calculations will be re-run irrespective of files present.
8.2 Connect to the Nature Index Database
To access and download indicator data, we need to retrieve a token from the NI database. For that to work, we need access to our NI database access credentials; we retrieve those from environmental variables (if you have not saved them as environmental variables, you can find the code for doing that in chapter 0; alternatively, you can also manually set them here):
8.3 Retrieve data and calculate NI2025
The entire workflow for NI calculations is contained in NIflex::calclulateCustomNI() and contains the following steps:
- Data download via NIcalc::importDatasetApi
- Assembly of input data for calculations via NIcalc::assembleNiObject
- Optional: run dataset diagnostics via NIcalc::imputeDiagnostics
- Optional: impute missing data via NIcalc::imputeData (which uses mice::mice)
- Index calculation via NIcalc::calculateIndex
The list of indicators that is used to calculate NI for specific ecosystems is retrieved directly from the NI database and is shown further down (after calculations).
NIflex does provide the option to drop selected indicators; however, as the NI database is currently updated in terms of active/inactive indicators for NI2025, we do not need to drop any additional indicators.
if(!file.exists(paste0("data/NI2025_Data_", Ecosystem[1], ".rds")) | forceReRun){
## Assign indicator set
indicators_use <- NULL
## Make list of indicators to drop
dropInd <- selectDropIndicators(DropIndMode = DropIndMode,
OutputType = OutputType,
ecosystem = ifelse(OutputType %in% c("NatureIndex", "EcologicalCondition"), ecosystem_use, NULL),
customList = DropIndList)
## Calculate index for specified ecosystem/indicators
CustomNI <- calculateCustomNI(ecosystem = ecosystem_use,
indicators = indicators_use,
theme = theme,
dropInd = dropInd,
username = NIdb_username,
password = NIdb_password,
KeyIndicators = KeyIndicators,
KeyWeight = KeyWeight,
AreaWeights = AreaWeights,
TrophicWeights = TrophicWeights,
NAImputation = NAImputation,
years = years,
OutputType = OutputType,
funArguments = funArguments,
Diagnostics = Diagnostics,
TestRun = TestRun,
norwegianNames = norwegianNames,
saveSteps = TRUE)
}8.4 Storing numerical results locally
NIflex::calculateCustomIndex() automatically saves the results into the working directory as “CustomIndex_Data.rds”. Since we are now handling multiple indices (NI for all seven ecosystems, as well as a couple of thematic indices), we want to make sure they all have logical and individual file names. We therefore rename the output file:
if(!file.exists(paste0("data/NI2025_Data_", Ecosystem[1], ".rds")) | forceReRun){
file.rename(from = "CustomIndex_Data.rds",
to = paste0("data/NI2025_Data_", Ecosystem[1], ".rds"))
}The output file contains a lot of information and metadata on the indicator set, calculated index, spatial units, calculation parameters, etc. It’s also an R object, making it not the best “reference” for looking up values for non-specialists (including the “Faggruppe” for NI that will be responsible for interpreting and reporting results). For that reason, we will summarise the most important numbers and save them as .csv files in designated folders. For now, we will do this for the following parts of the results:
- Indicator list (incl. metadata)
- Indicator weights
- Statistical summary of calculated index distributions
if(!exists("CustomNI")){
CustomNI <- readRDS(paste0("data/NI2025_Data_", Ecosystem[1], ".rds"))
}
## Make target folder (if non-existent)
saveFolder <- paste0("results_", Ecosystem[1])
if(!dir.exists(saveFolder)){
dir.create(saveFolder)
}
## Save indicator list
indicatorList <- CustomNI$CustomIndex$wholeArea$`2024`$indicatorData %>%
dplyr::select(id, name, keyElement, functionalGroup, scalingModel)
readr::write_excel_csv(indicatorList, file = paste0(saveFolder, "/indicatorList.csv"))
## Save summarised indicator weights
indicatorWeights <- data.frame(
name = rownames(NIcalc::summaryWeights(CustomNI$CustomIndex$wholeArea)),
weight = NIcalc::summaryWeights(CustomNI$CustomIndex$wholeArea)[,2],
row.names = NULL) %>%
dplyr::mutate(weigth_percent = round(weight*100, digits = 2))
readr::write_excel_csv(indicatorWeights, file = paste0(saveFolder, "/indicatorWeights.csv"))
## Make and save statistical summary of calculated index distributions
indexSummary <- data.frame()
for(a in 1:length(CustomNI$CustomIndex)){
for(t in 1:length(years)){
indexSum_a_t <- data.frame(
Area = names(CustomNI$CustomIndex)[a],
Year = years[t],
value = CustomNI$CustomIndex[[a]][[t]]$index) %>%
dplyr::group_by(Area, Year) %>%
dplyr::summarise(mean = mean(value),
median = median(value),
sd = sd(value),
rel_sd = sd/mean,
q025 = quantile(value, probs = 0.025),
q05 = quantile(value, probs = 0.05),
q25 = quantile(value, probs = 0.25),
q75 = quantile(value, probs = 0.75),
q95 = quantile(value, probs = 0.95),
q975 = quantile(value, probs = 0.975),
.groups = "keep") %>%
dplyr::ungroup()
indexSum_a_t[, 3:12] <- round(indexSum_a_t[, 3:12], digits = 3)
indexSummary <- indexSummary %>%
dplyr::bind_rows(indexSum_a_t)
}
}
indexSummary <- indexSummary %>%
dplyr::mutate(Area = dplyr::case_when(Area == "wholeArea" ~ "All Norway",
Area == "E" ~ "Eastern Norway",
Area == "S" ~ "Southern Norway",
Area == "W" ~ "Western Norway",
Area == "N" ~ "Northern Norway",
Area == "C" ~ "Central Norway",
TRUE ~ Area))
readr::write_excel_csv(indexSummary, file = paste0(saveFolder, "/indexStatSummary.csv"))Note that all steps related to summarising and saving numerical data are only required if we have just re-run calculations.
Some numerical results also have to be sent back to the NI database. This is done in the last part of this script (see below).
8.5 Overview over indicator set and weights
This and the following chapter present the calculated NI2025 for the ecosystem Coast. Irrespective of whether we have just re-run calculations, we start by loading in the complete results file, as well as summary tables created in the previous section:
saveFolder <- paste0("results_", Ecosystem[1])
Index <- readRDS(paste0("data/NI2025_Data_", Ecosystem[1], ".rds"))$CustomIndex
indicatorList <- readr::read_csv(paste0(saveFolder, "/indicatorList.csv"))
indicatorWeights <- readr::read_csv(paste0(saveFolder, "/indicatorWeights.csv"))
indexSummary <- readr::read_csv(paste0(saveFolder, "/indexStatSummary.csv"))The following table lists all indicators that are part of NI2025 for Coast (Kystvann). More information on each indicator can be found in the NI database (https://naturindeks.nina.no/). Visualizations of indicator values and trends are shown in Chapter 1.
| id | name | keyElement | functionalGroup | scalingModel |
|---|---|---|---|---|
| 3 | Alge på bjørk | FALSE | Primærprodusent | Low |
| 5 | Alm | FALSE | Primærprodusent | Low |
| 9 | Bananslørsopp | FALSE | Primærprodusent | Low |
| 10 | Begerfingersopp | FALSE | Nedbryter | Low |
| 399 | Bjørkefink | FALSE | Mellompredator | Low |
| 23 | Blåbær | TRUE | Primærprodusent | Low |
| 398 | Bokfink | FALSE | Mellompredator | Low |
| 29 | Brunbjørn | FALSE | Topp-predator | Low |
| 351 | Dagsommerfugler i skog | FALSE | Plantespisere og filterspisere | Low |
| 410 | Dompap | FALSE | Mellompredator | Low |
| 314 | Duetrost | FALSE | Mellompredator | Low |
| 41 | Eldre lauvsuksesjon (MiS) | TRUE | Ikke egnet | Low |
| 42 | Elg | FALSE | Plantespisere og filterspisere | Low |
| 49 | Fiolgubbe | FALSE | Primærprodusent | Low |
| 286 | Fjellvåk | FALSE | Topp-predator | Low |
| 392 | Flaggspett | FALSE | Mellompredator | Low |
| 28 | Flekkhvitkjuke | FALSE | Nedbryter | Low |
| 110 | Fossenever | FALSE | Primærprodusent | Low |
| 407 | Fuglekonge | FALSE | Mellompredator | Low |
| 60 | Gamle trær (MiS) | TRUE | Ikke egnet | Low |
| 434 | Gammel skog | TRUE | Ikke egnet | Low |
| 62 | Gaupe | FALSE | Topp-predator | Low |
| 408 | Gjerdesmett | FALSE | Mellompredator | Low |
| 414 | Grå fluesnapper | FALSE | Mellompredator | Low |
| 317 | Granmeis | FALSE | Mellompredator | Low |
| 318 | Gransanger | FALSE | Mellompredator | Low |
| 69 | Grønn fåresopp | FALSE | Primærprodusent | Low |
| 394 | Grønnspett | FALSE | Mellompredator | Low |
| 335 | Gulsanger | FALSE | Mellompredator | Low |
| 412 | Hagesanger | FALSE | Mellompredator | Low |
| 77 | Hjort | FALSE | Plantespisere og filterspisere | Low |
| 319 | Hønsehauk | FALSE | Topp-predator | Low |
| 359 | Humler i skog | FALSE | Plantespisere og filterspisere | Low |
| 86 | Isterviersumpskog | FALSE | Primærprodusent | Low |
| 400 | Jernspurv | FALSE | Mellompredator | Low |
| 88 | Jerv | FALSE | Topp-predator | Low |
| 89 | Jordstjerner | FALSE | Nedbryter | Low |
| 322 | Kongeørn | FALSE | Topp-predator | Low |
| 98 | Kopperrød slørsopp | FALSE | Primærprodusent | Low |
| 100 | Kusymre | FALSE | Primærprodusent | Low |
| 106 | Lappkjuke | FALSE | Nedbryter | Low |
| 419 | Liggende død ved – mengde | TRUE | Nedbryter | Low |
| 108 | Liggende død ved (MiS) – arealandel | FALSE | Nedbryter | Low |
| 109 | Lirype | FALSE | Plantespisere og filterspisere | Low |
| 324 | Løvsanger | FALSE | Mellompredator | Low |
| 325 | Måltrost | FALSE | Mellompredator | Low |
| 326 | Munk | FALSE | Mellompredator | Low |
| 396 | Nøtteskrike | FALSE | Mellompredator | Low |
| 130 | Olavsstake | FALSE | Primærprodusent | Low |
| 384 | Orrfugl | FALSE | Plantespisere og filterspisere | Low |
| 153 | Rådyr | FALSE | Plantespisere og filterspisere | Low |
| 409 | Ringdue | FALSE | Mellompredator | Low |
| 406 | Rødstjert | FALSE | Mellompredator | Low |
| 402 | Rødstrupe | FALSE | Mellompredator | Low |
| 395 | Rødvingetrost | FALSE | Mellompredator | Low |
| 433 | Rogn-Osp-Selje | TRUE | Primærprodusent | Low |
| 332 | Smågnagere - skogbestander | TRUE | Plantespisere og filterspisere | Low |
| 418 | Stående død ved – mengde | TRUE | Nedbryter | Low |
| 183 | Stående død ved (MiS) – arealandel | FALSE | Nedbryter | Low |
| 186 | Storfugl | FALSE | Plantespisere og filterspisere | Low |
| 187 | Storpiggslekten (sopp) | FALSE | Primærprodusent | Low |
| 328 | Svarthvit fluesnapper | FALSE | Mellompredator | Low |
| 403 | Svartmeis | FALSE | Mellompredator | Low |
| 194 | Svartnende kantarell | FALSE | Primærprodusent | Low |
| 195 | Svartsonekjuke | FALSE | Nedbryter | Low |
| 393 | Svartspett | FALSE | Mellompredator | Low |
| 397 | Svarttrost | FALSE | Mellompredator | Low |
| 436 | Tamrein | FALSE | Plantespisere og filterspisere | Low |
| 330 | Toppmeis | FALSE | Mellompredator | Low |
| 207 | Trær med hengelav (MiS) | FALSE | Primærprodusent | Low |
| 405 | Trekryper | FALSE | Mellompredator | Low |
| 401 | Trepiplerke | FALSE | Mellompredator | Low |
| 209 | Ulv | FALSE | Topp-predator | Low |
Indicators are assigned weights (= contributions to NI) based on their functional group (trophic weight), the relative extent of area for which data is available (area weight), and whether or not they are considered key indicators (all key indicators together are given 50% of the total weight in NI calculations).

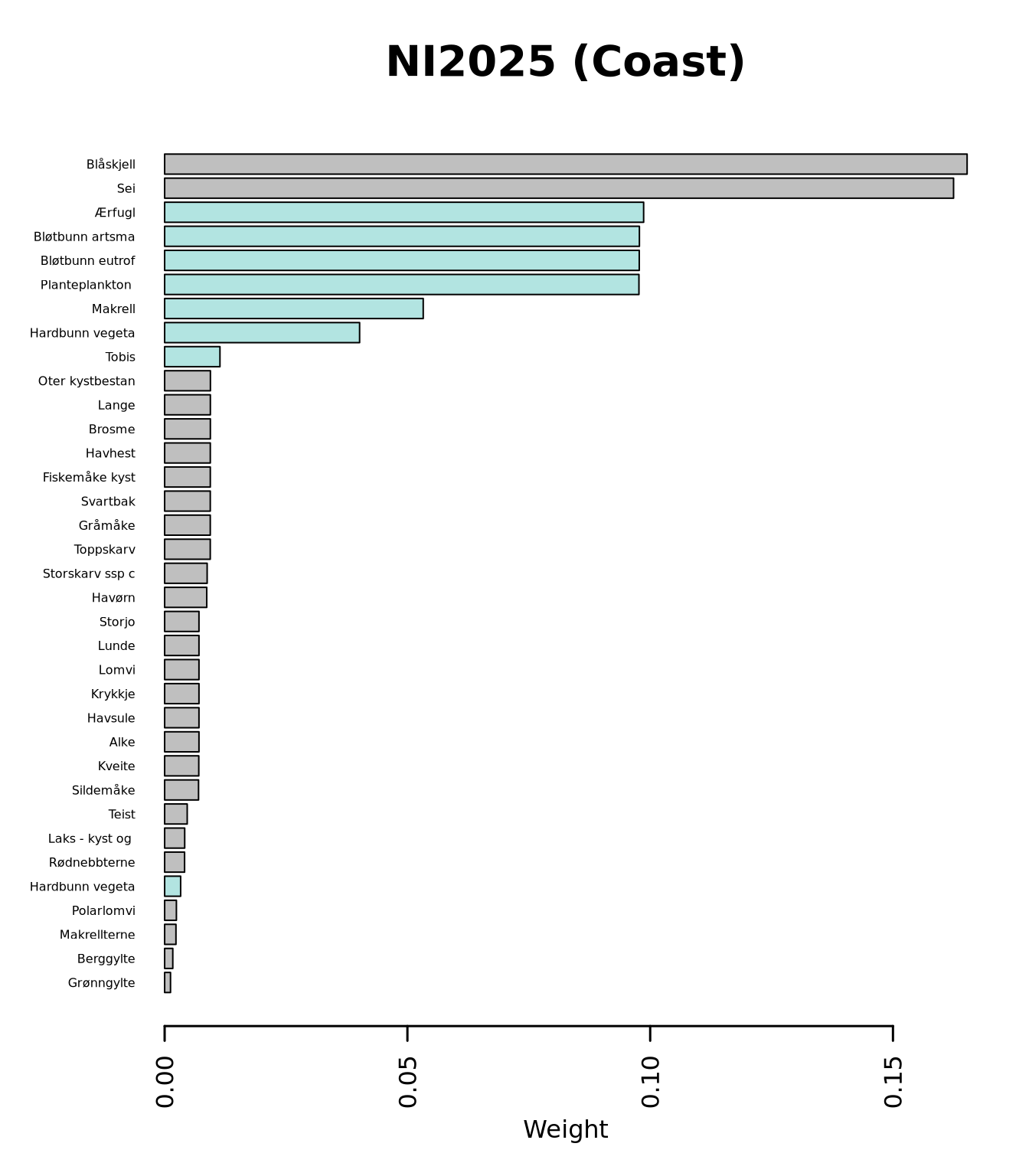

For NI2025, the top 35 indicator weights for ecosystem Coast are attributed as shown below. Note that blue bars represent the key indicators, while grey bars are “normal” (= non-key) indicators.
This figure, as well as an extended version showing weights for all included indicators, can be found in the ecosystem-specific results folder under “Plots”.
A table containing all indicator weights in numerical format is saved under results_Coast/indicatorWeights.csv.
8.6 Visualizing results

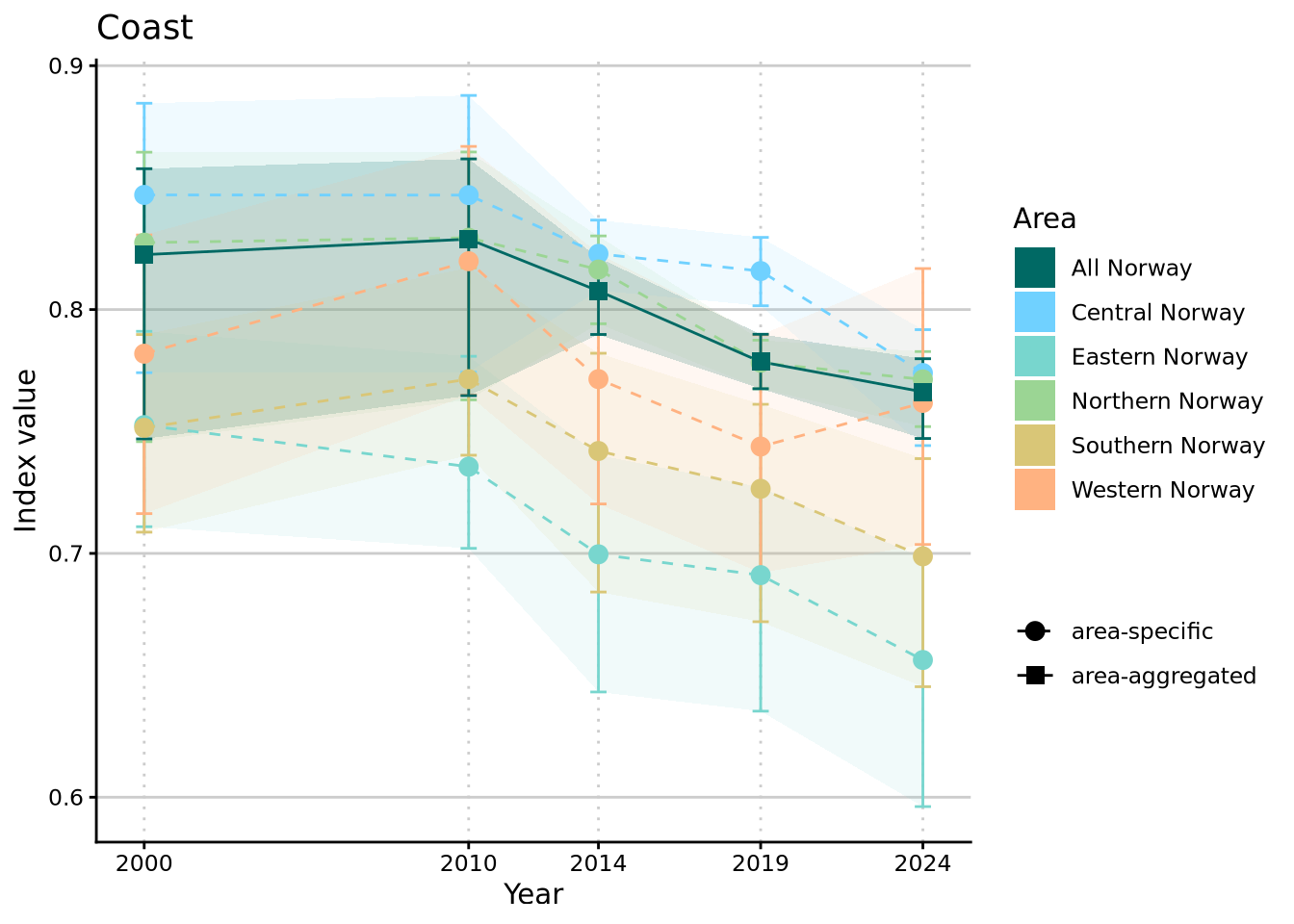

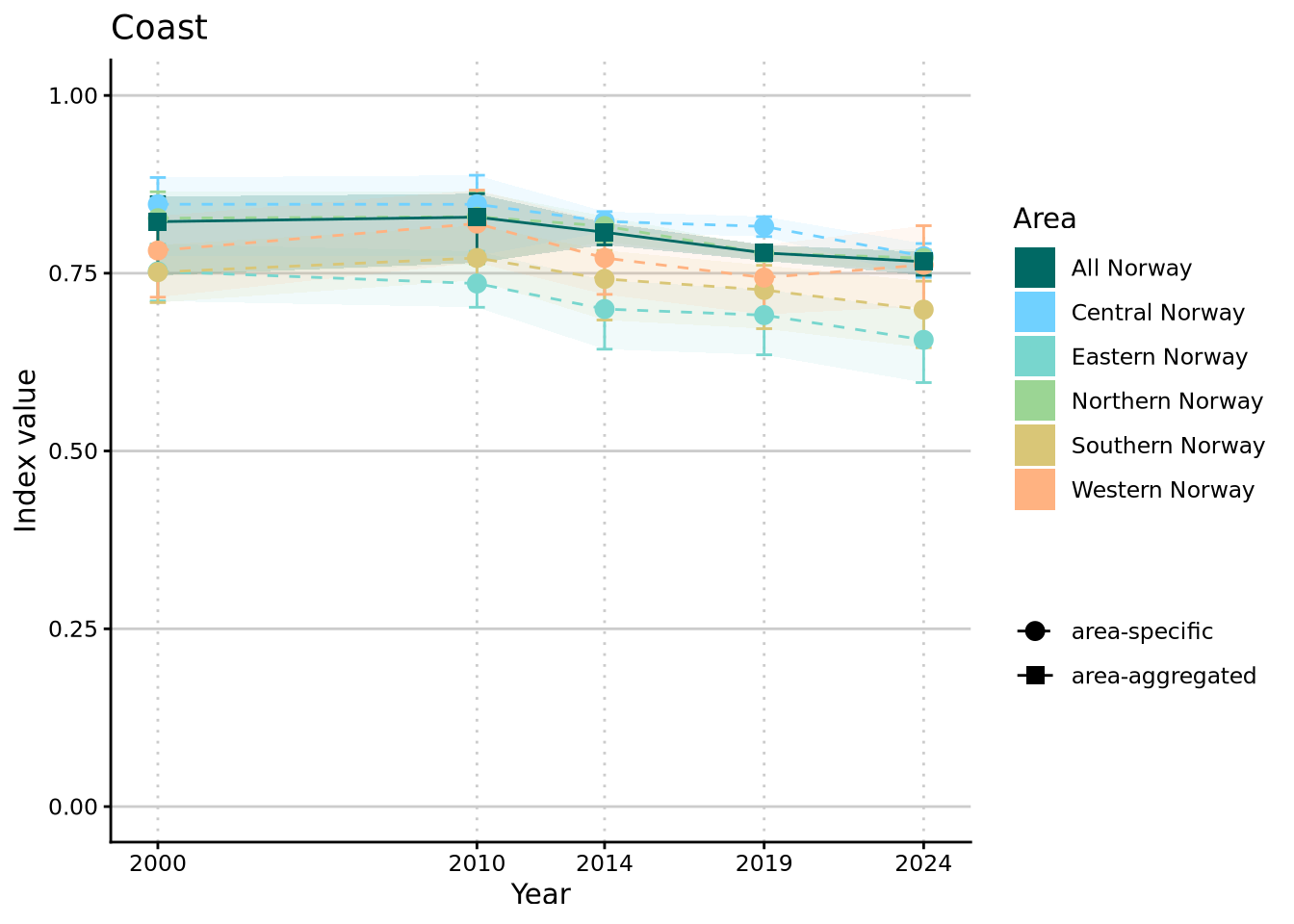

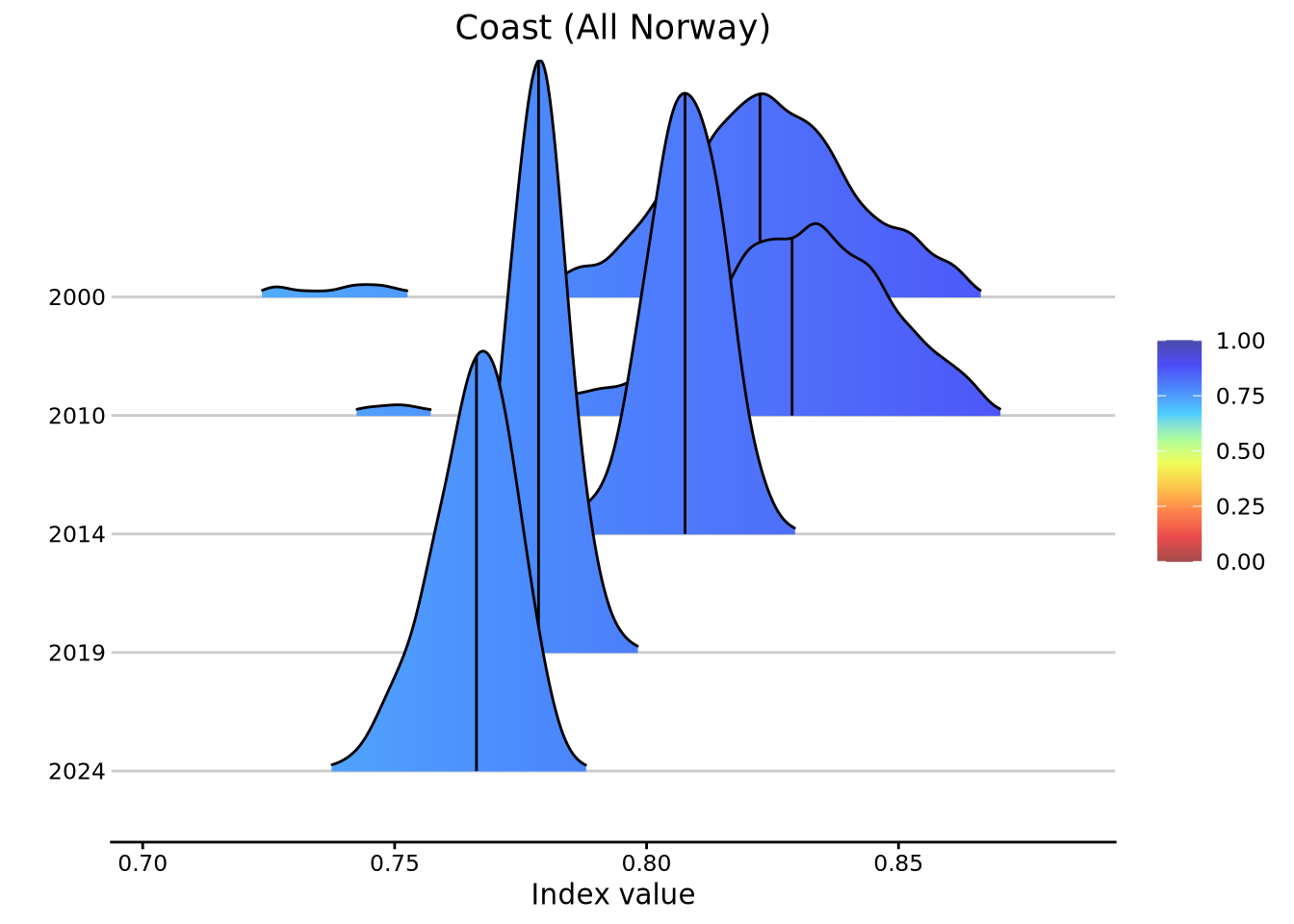

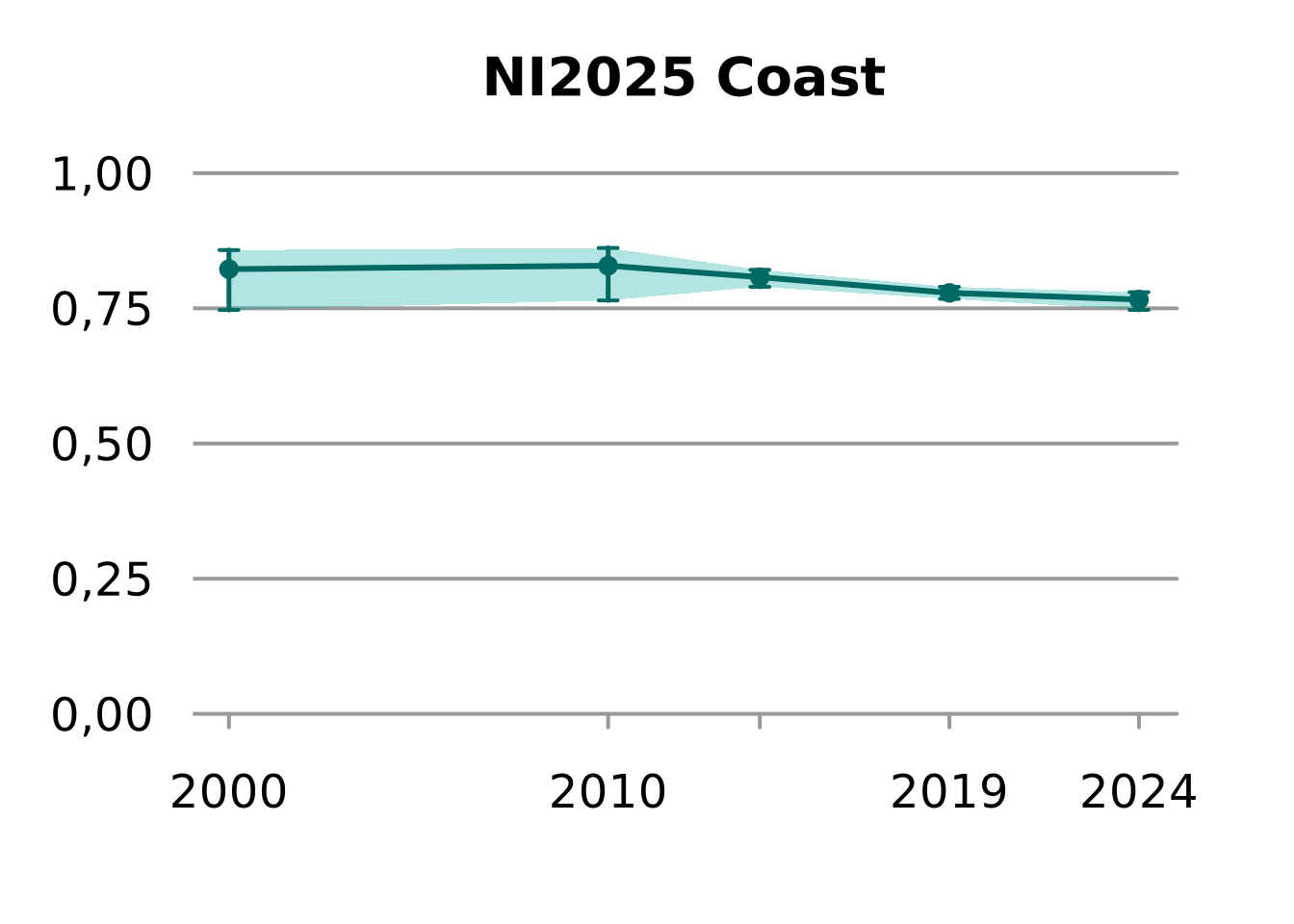

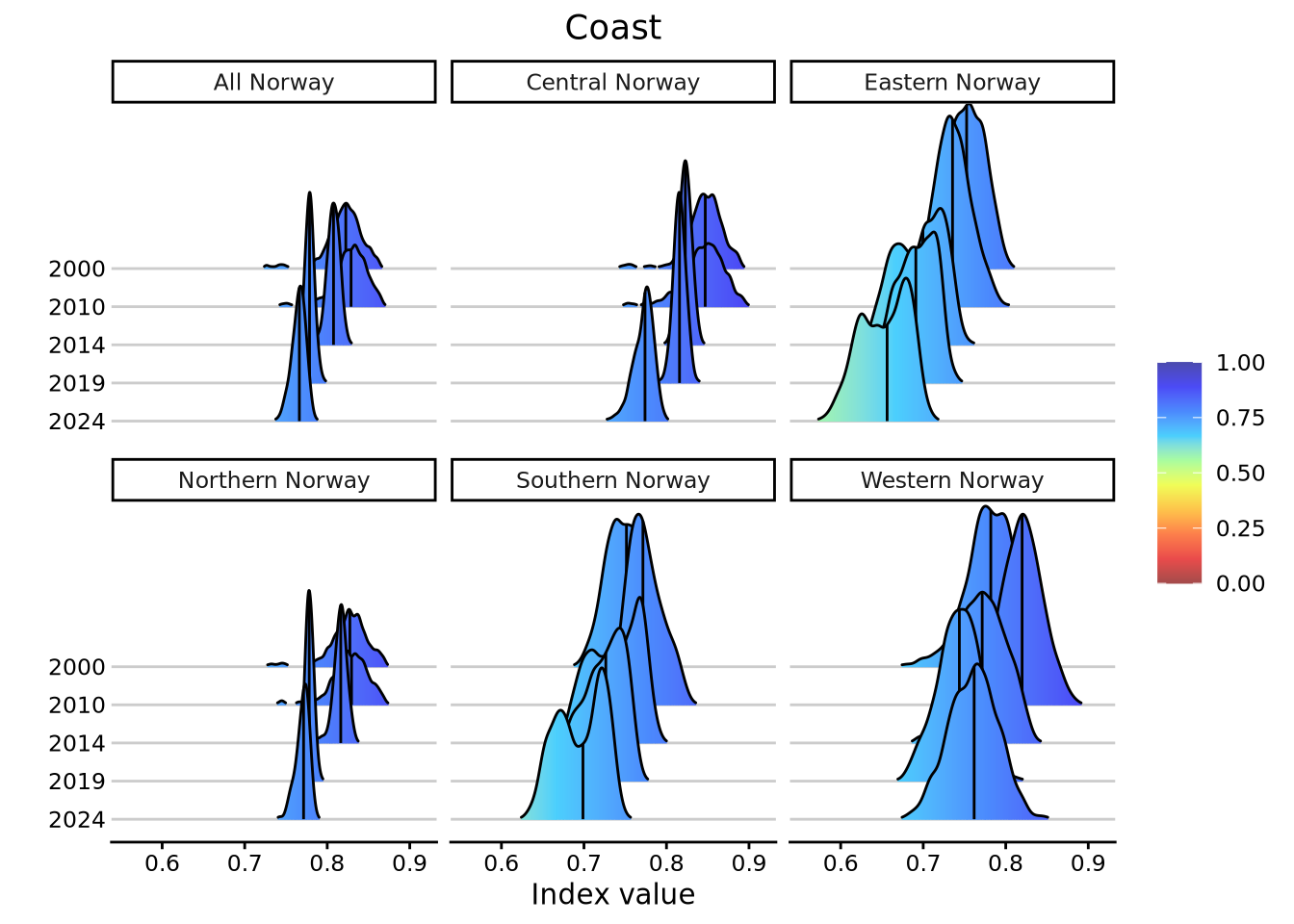

Traditionally, NI has been presented using two different types of visualizations: time-series graphs of medians with 95% confidence intervals and maps of median values (for each year).
The graphical presentation of NI2025 has been extended and will include the following:
Time-series graphs of medians and 95% confidence intervals, for the area-aggregated mean as before but also including values for each of the five major regions of Norway
Time-series graphs of complete values distributions for the area-aggregated means and for each of the five major regions of Norway
Maps of median values, uncertainty (represented as interquartile distance), and statistical location displacement
Below we present each one of these. In addition to the displays in this document, all plots are also saved as .pdf and .svg files in the “Plots” subfolder in the respective ecosystem’s results folder (results_Coast).
Dynamic versions of median/95% CI time series and median/uncertainty maps will be included on the new webpage for NI2025 (under development).
8.6.1 Time-series of medians and 95% CIs
For just getting a quick look at the NI values for all of Norway over time, we can use the original plotting function from the “NIcalc” package:
NIflex::plotNI_StandardTS() gives us an extended version of this type of plot which also includes values for each major region of Norway separately:
standardTS1 <- NIflex::plotNI_StandardTS(Index = Index,
plotTitle = Ecosystem[1],
addAverage = TRUE,
truncateY = FALSE)
standardTS1
The plot above shows the development of NI over time on the complete scale of values from 0 to 1. This gives a good idea of where values lie relative to the ideal of “good condition” / “as little as possible human impacted ecosystem” but is not necessarily the best for looking at between-year changes in NI. The latter is more obvious with a truncated y axis that is limited to the range of values that this NI actually takes:
standardTS2 <- NIflex::plotNI_StandardTS(Index = Index,
plotTitle = Ecosystem[1],
addAverage = TRUE,
truncateY = TRUE)
standardTS2
8.6.2 Time-series of entire uncertainty distributions
NI is calculated through simulation and bootstrap; as such, the results consist of 1000 replicate values. The distribution of these values does not necessarily have to be normal and it is good to have a look at what the entire value distributions look like, not just their medians and quantiles/confidence intervals. That’s what NIflex::plotNI_DensityRidgeTS() is for. When plotting for the area-aggregated estimates (entire Norway), we get:
densTS1 <- NIflex::plotNI_DensityRidgeTS(Index = Index,
OutputType = OutputType,
ecosystem = ecosystem_use,
theme = theme,
allAreas = FALSE,
selectedArea = "wholeArea")
densTS1
And the same separated by area:
densTS2 <- NIflex::plotNI_DensityRidgeTS(Index = Index,
OutputType = OutputType,
ecosystem = ecosystem_use,
theme = theme,
allAreas = TRUE)
densTS2
8.6.3 Median, uncertainty, and displacement maps
Maps are very popular tools for disseminating results nowadays, but their major drawback is that usually, they are presented without associated uncertainty. For that reason, NI2025 will have an added focus on visualizing uncertainty associated with maps, too. There are two key elements of uncertainty in NI calculations:
Uncertainty characterizing the distribution of predicted NI values. This is the same type of uncertainty we also visualized in time series above and it is a quantitative measure of the spread of the predicted index values. In the map plots, we use the confidence interval width (97.5% quantile - 2.5% quantile) for visualizing uncertainty, but other measures (e.g. standard deviation, relative standard deviation, additional quantiles) can be found in the statistical summary table results_Coast/indexStatSummary.csv.
Statistical location displacement. This is a measure that quantifies the degree to which the median of index calculations is “displaced” during the aggregation process. This displacement is a statistical artifact resulting from truncation of indicator values that exceed their reference value. It has always been a property of the NI’s statistical framework and is not considered a major issue. However, it is important to keep location displacement in mind when interpreting results, i.e. median values with a large associated displacement should be interpreted with extra caution.
Before proceeding, we first need to combine our index values with corresponding geospatial data. The latter is contained in shapefiles archived on NINA’s internatal data systems under “P:/412430_naturindeks/Beregninger/Shapefiles”. The shapefiles are derived from spatial data stored in the NI database; if you are in need of access to these shapefiles, please contact the NI core team at NINA (naturindeks@nina.no) or the database administrator (siw.berge@nina.no).
CustomNI_map <- NIflex::geomapNI(Index = Index,
year = mapYear,
OutputType = OutputType,
ecosystem = ecosystem_use,
shapeLibraryPath = shapeLibraryPath)Then we are ready to plot the pair of maps representing the median values and value uncertainty:
NIflex::plotNI_Map(shp = CustomNI_map,
year = mapYear,
OutputType = OutputType,
ecosystem = ecosystem_use,
plotMedian = TRUE, plotCI = TRUE, plotDisplacement = FALSE,
interactiveMap = TRUE)And we can do the same with location displacement instead of CI width:
NIflex::plotNI_Map(shp = CustomNI_map,
year = mapYear,
OutputType = OutputType,
ecosystem = ecosystem_use,
plotMedian = TRUE, plotCI = FALSE, plotDisplacement = TRUE,
interactiveMap = TRUE)Static versions of all types of maps for the different years are saved under results_Coast/Plots/Maps. The code for generating them is below:
## Make directory
if(!dir.exists(paste0(plotPath, "/Maps"))){
dir.create(paste0(plotPath, "/Maps"))
}
for(t in 1:length(years)){
## Set up map base
CustomNI_map <- NIflex::geomapNI(Index = Index,
year = years[t],
OutputType = OutputType,
ecosystem = ecosystem_use,
shapeLibraryPath = shapeLibraryPath)
## Draw maps
mapMedian <- NIflex::plotNI_Map(shp = CustomNI_map,
year = years[t],
OutputType = OutputType,
ecosystem = ecosystem_use,
plotMedian = TRUE, plotCI = FALSE, plotDisplacement = FALSE,
interactiveMap = FALSE)
mapCI <- NIflex::plotNI_Map(shp = CustomNI_map,
year = years[t],
OutputType = OutputType,
ecosystem = ecosystem_use,
plotMedian = FALSE, plotCI = TRUE, plotDisplacement = FALSE,
interactiveMap = FALSE)
mapDisp <- NIflex::plotNI_Map(shp = CustomNI_map,
year = years[t],
OutputType = OutputType,
ecosystem = ecosystem_use,
plotMedian = FALSE, plotCI = FALSE, plotDisplacement = TRUE,
interactiveMap = FALSE)
## Save as multipage pdf
pdf(paste0(plotPath, "/Maps/NI2025_", Ecosystem[1], "_", years[t], ".pdf"), width = 5, height = 5)
print(mapMedian)
print(mapCI)
print(mapDisp)
dev.off()
## Save as svg
svglite(paste0(plotPath, "/Maps/NI2025_", Ecosystem[1], "_Median_", years[t], ".svg"), width = 5, height = 5)
print(mapMedian)
dev.off()
svglite(paste0(plotPath, "/Maps/NI2025_", Ecosystem[1], "_CIwidth_", years[t], ".svg"), width = 5, height = 5)
print(mapCI)
dev.off()
svglite(paste0(plotPath, "/Maps/NI2025_", Ecosystem[1], "_Displacement_", years[t], ".svg"), width = 5, height = 5)
print(mapDisp)
dev.off()
}
